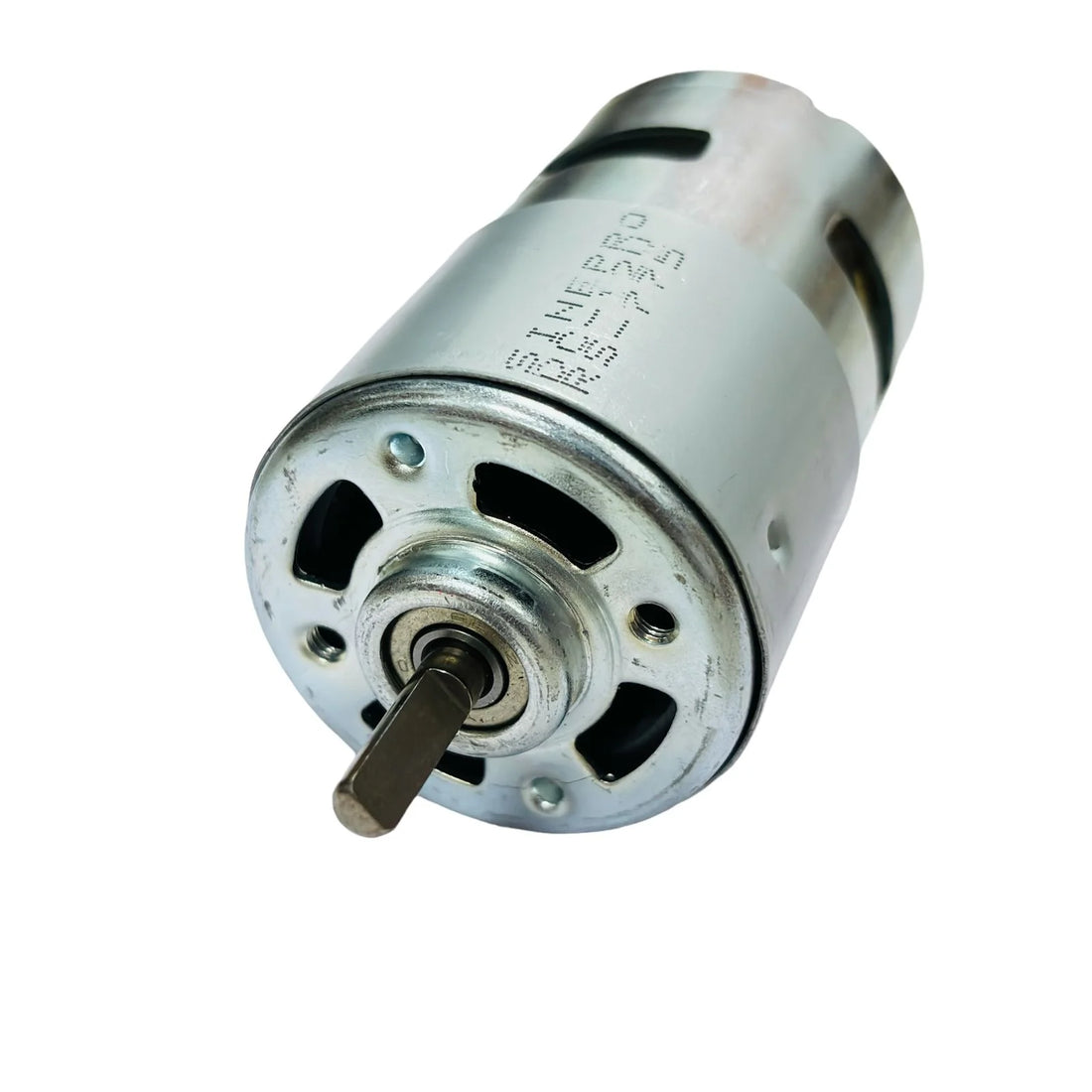

D-Shaft 775 DC 12V Motor with Original Bearing

Descriptions

Specification Voltage: 12V No-load speed: 10,000 RPM No-load current: 0.35A Rated load: 2.0A Rated torque: 0.8 Nm Stall current: 9A Shaft diameter: 5mm Shaft length: 17mm Description The 12V 775 DC motor is a high power motor commonly used in a variety of applications such as robotics, automation, and automotive industry. Here are the technical specifications of a typical 12V 775 DC motor also highly used for water pumps: 1. Voltage: 12V 2. No-load speed: 10,000 RPM 3. No-load current: 0.35A 4. Rated load: 2.0A 5. Rated torque: 0.8 Nm 6. Stall current: 9A 7. Shaft diameter: 5mm 8. Shaft length: 17mm 9. Motor diameter: 42mm 10. Motor length: 67mm 11. Weight: ?245g 12. Operating temperature range: -10°C to +50°C 13. Insulation class: Class B 14. Motor type: Brushed DC motor 15. Enclosure type: Open frame It is important to note that the specifications may vary slightly depending on the manufacturer and model of the motor
